HeliaSol® – The innovative solar film

HeliaSol transforms buildings into clean solar power plants for green electricity generation. This ready-to-use solution can be used on various building surfaces. The solar film has an integrated backside adhesive, which means that it can be easily glued on the surface and can be connected and used immediately due to the integrated connection cables.

HeliaSol is the perfect solution for retrofitting buildings where restrictions in terms of weight, static load restrictions or penetration of the roof material play a role. Elaborate substructures that penetrate the roof or rear ventilation for cooling are not required. HeliaSol can be used to produce clean solar electricity on roofs or façades which normally do not allow PV solutions.

  1. Carrier film with a vapor deposited organic stack
  2. Encapsulation to protect the organic stack against environmental influences
  3. Integrated backside adhesive
  4. Junction box with cables

<2 kg
weight of one film

<2 mm thin
(excluding junction box)

Bending radius up to 20 cm

HeliaSol is a truly green product and is based on the greenest of all solar technologies, making it one of the cleanest electricity generating technologies with a carbon footprint of less than 10 g CO2e per kilowatt hour generated. This makes HeliaSol considerably greener than conventional silicon-based solar modules or lignite with a value of up to 1,000 CO2e per kilowatt hour.

Discover more

Untapped potential for solar electricity generation

With established solar solutions, many surfaces cannot be used, especially on buildings. These include roofs with low static load-bearing capacity, round roof shapes, façades, curved surfaces, or substrate materials that should not be penetrated. The untapped potential of exploiting these surfaces for the generation of solar electricity is virtually unlimited. Heliatek has developed an innovative solar technology that will unlock this potential. We aim to enable every building to become a net-zero energy building, self-powered with clean energy.



Illustration

Easy-to-install

HeliaSol can be glued to various materials, such as metal, concrete, membranes, glass, bitumen, and other substrates on request. The films can be installed easily and simply in just a few steps.

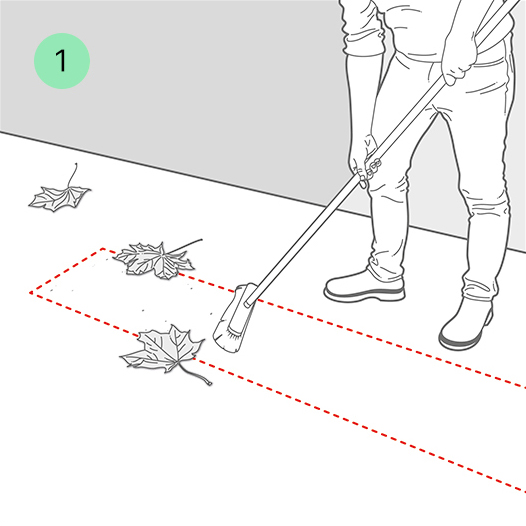

  1. Prepare the installation surface

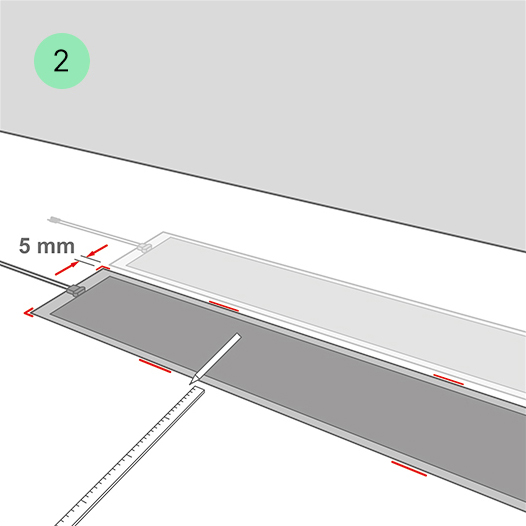

  2. Position the solar film on the installation surface

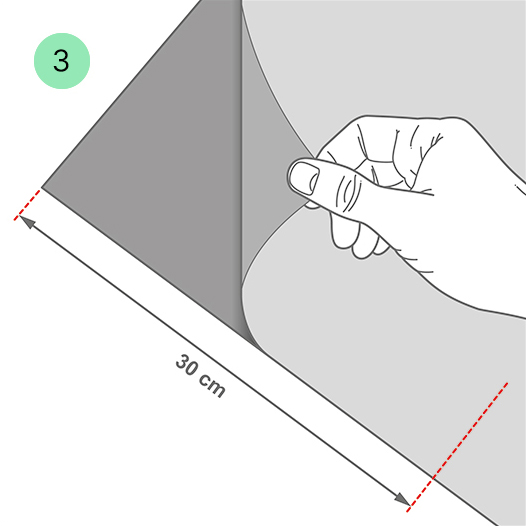

  3. Remove the backside adhesive protection liner

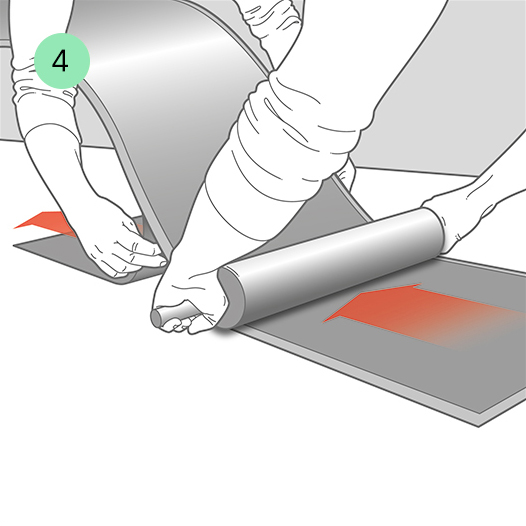

  4. Fix the solar film with a roller
  5. Remove the front protection liner

Please note that the installation must be carried out by an authorized specialist in accordance with the user guide.

SpecificationsHeliaSol® 436-2000 (preliminary data)
TechnologyOrganic photovoltaics
Power classes50-60 W
DimensionL:W:H: 2000 mm x 436 mm x 1.8 mm (Height including junction box 18 mm)
AppearanceSolar film with opaque solar area and black colored edge; central junction box with cables
Weight< 2kg/m2
SurfacesMetal, Concrete, Membrane, Glass, Bitumen (other surfaces upon request)
CertificationPlanned: IEC 61730, IEC 61215
Warranty5 years product warranty, 20 years performance warranty
